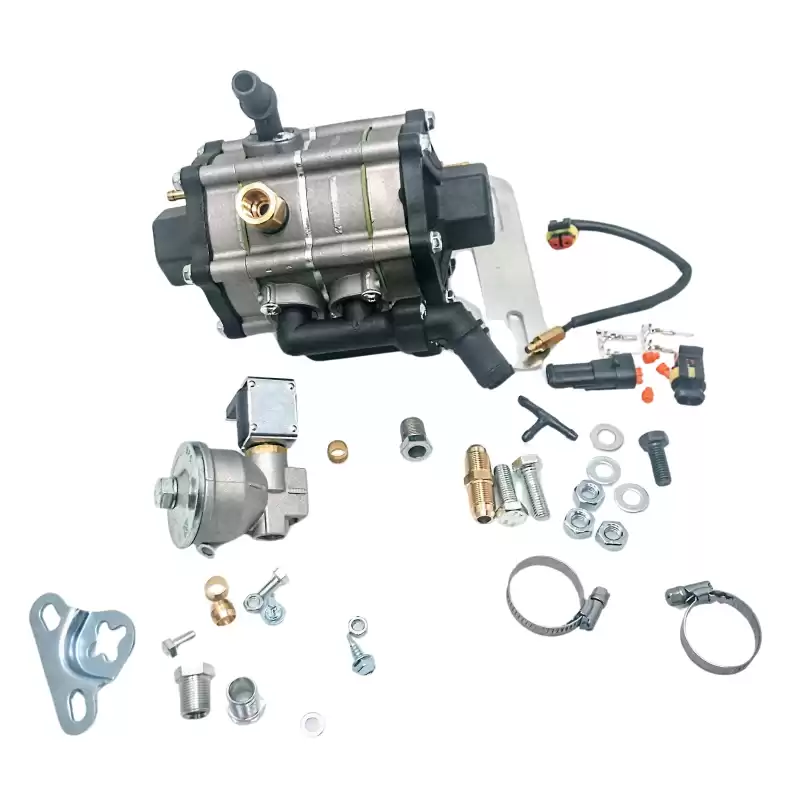

STAG R02 TWIN
The AC R02 TWIN two-stage power reducer is designed for car sequential injection systems. The device is used to reduce the pressure of the liquid LPG flowing from the tank and transform it into a gaseous phase (vaporization).
Thermal insulation system
The features of the reducer include a compact size and a unique design comprising 4 aluminum castings and 2 covers made in the ACtherm system preventing gas cooling, thus providing excellent thermal insulation. Due to its unique design, the AC R02 TWIN heats up very quickly, so that switching to gas is also carried out quickly. Therefore, no additional controller work, such as temperature correction, is required. Its high thermal efficiency and resistance to LPG contamination make the reducer the best option when selecting autogas system components.
Pressure stabilization system
The AC R02 TWIN reducer is equipped with the unique ACPress system which provides constant pressure injector rails in various road conditions. It should also be noted that stability is guaranteed regardless of the inlet pressure at the gas cylinder.
Universal mounting system
It is completely new that the unit is fixed with only one bolt, which allows the reducer to be installed practically in any position. The versatility of the reducer is complemented by the TriACflex elbow connector system which can be configured in any arrangement.
A layout of elbows can be shown here with a legend: straight pipe connector, 90 and 60 degree elbows.
Advantages
- small dimensions,
- compact design,
- excellent thermal efficiency,
- stable adjustments,
- resistance to LPG contamination,
- stable supply independent of the inlet pressure of the gas bottle,
- low pressure drops at high loads,
- assembly with a single bolt,
- elbow connector system.
Standards and Approvals
The STAG R02 TWIN reducer has been approved under E8 approval No. 67R-01 6865 and meets the requirements of UNECE Regulation No. 67.
Technical specification
|
STAG R02 TWIN |
| Material |
4 rooms
cast aluminum and 2 lids
in plastic |
| Weight [kg] |
Reducer – 1520g
Complete set – 1840 |
| Dimensions [mm] |
162x141x129 |
| Maximum inlet pressure |
30 bar |
| Output pressure |
Adjustable
0.9 to 1.5 bar |
| Solenoid valve supply |
12 VDC |
| Coil power |
214 |
| solenoid valve |
Gniazdo AMP
Superseal |
| Gas inlet diameter [mm] |
∅ 8.0 M12x1 |
| Gas outlet diameter [mm] |
∅12 |
| Water outlet diameter [mm] |
∅16 |
| Maximum engine power |
206kW/ 280KM |
| Approval |
67 R – 01 6865 |
| Vacuum hose [mm] |
∅4 |
