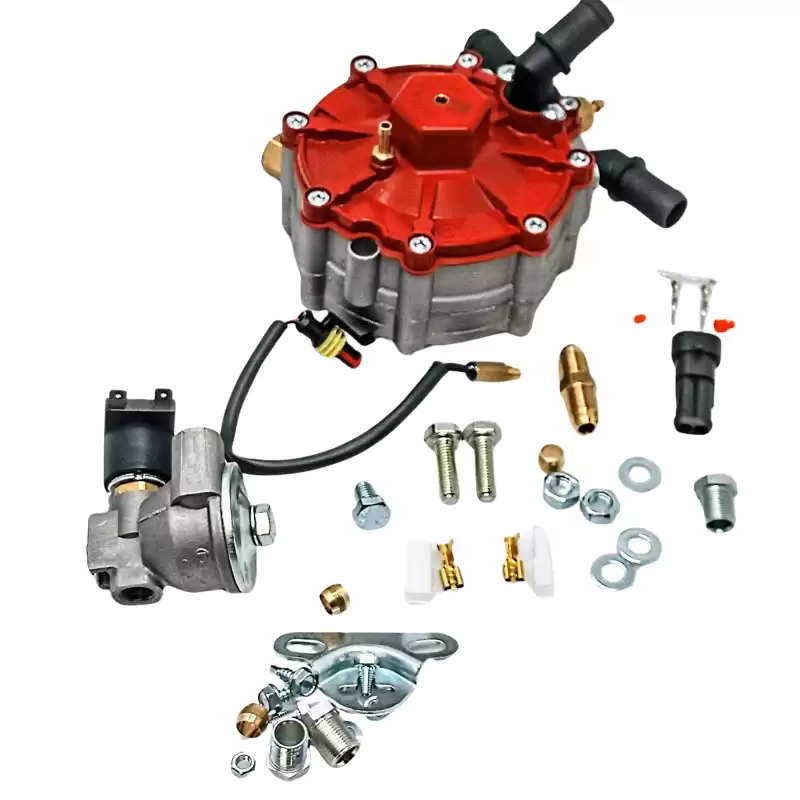

Vapo LPG regulator AC STAG R01 250HP Sold with LPG solenoid valve, temperature sensor & screws
The STAG R01 pressure reducer ensures stable and continuous pressure while providing precise fuel metering to LPG injectors. It is easily installed in cars with engines up to 250HP (red), especially turbocharged.
The STAG R01 vapor regulator ensures stable and continuous pressure while providing precise fuel metering to
lpg injectors
Due to its small size, the regulator vape can be easily installed in all cars with engines up to 150 HP (black) or up to 250 HP (red), especially turbocharged ones.
The high efficiency and thermal stability of the STAG R01 reducer guarantee:
stable pressure and accurate fuel metering under sudden acceleration and increased engine load,
correct gas temperature whatever the driving conditions,
correct vaporization of gas, even at exceptionally low ambient temperatures.
Technical specifications of STAG R01
| 150HP | 250HP | |
| Material | 3 pieces cast aluminum (body and cover) |
3 pieces cast aluminum (body and cover) |
| Weight | Reducer – 1100g Complete Kit - 1330g |
Reducer – 1100g Complete Kit - 1330g |
| Dimensions [mm] | 146x141x111 | 146x141x111 |
| Maximum inlet pressure | 3MPa | 3MPa |
| Output pressure | Adjustable bar from 0.9 to 1.3 |
Adjustable bar from 0.9 to 1.3 |
| Solenoid valve supply | 12 VDC | 12 VDC |
| Coil power | 214 | 214 |
| solenoid valve | Gniazdo AMP Superseal |
Gniazdo AMP Superseal |
| Gas inlet diameter [mm] | ∅ 6.0 Ml0x1 | ∅ 8.0 Ml2x1 |
| Gas outlet diameter [mm] | ∅12 | ∅16 |
| Water outlet diameter [mm] | ∅16 | ∅16 |
| Maximum engine power | 110kW/150KM | 184kW / 250KM |
| Approval | E4-67R-01 4619 | E4-67R-01 4619 |
| Vacuum hose [mm] | ∅4 | ∅4 |
