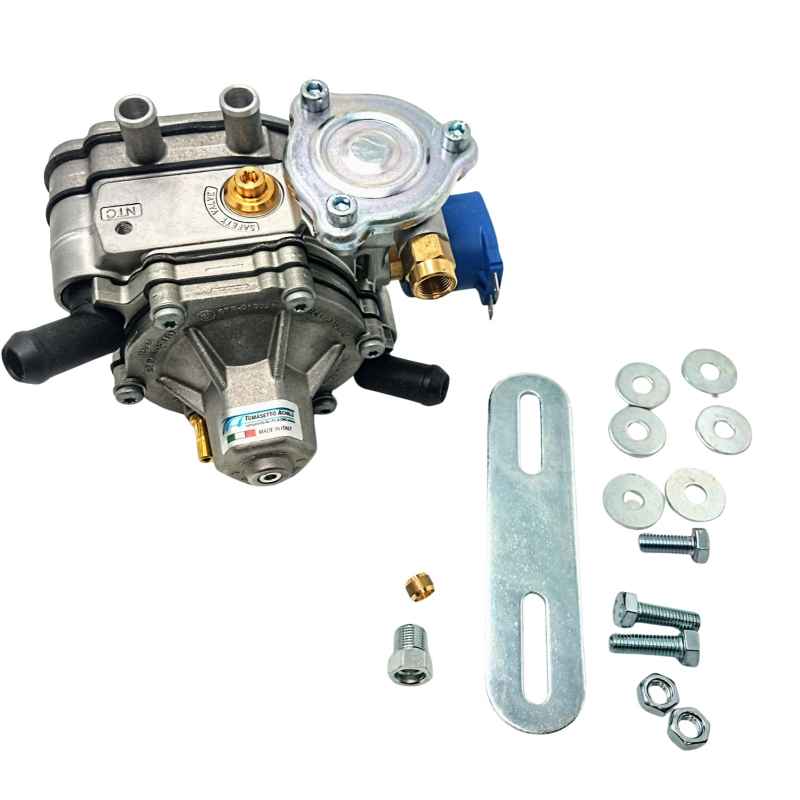

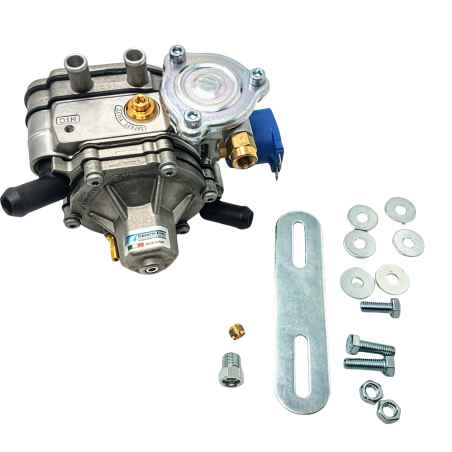

TOMA VAPOR 275KW AT13-TO3990T-7999-K10

PRODUCT DESCRIPTION AT13 XP VERSION Product type LPG sequential reducer Product type Die-cast aluminum body Weight 1.70 kg Dimensions 165x120x150 mm Maximum inlet pressure 3 MPa (30 bar) Outlet pressure * from 90 to 180 kPa * Coil voltage 12 V DC Coil power 17 W Fast-on coil connection (AMP on request) Input connection Tube M12x1 Ø 8 mm Output connection Fixed coupling Ø 12.5 mm Motor power up to 275 kW

Reducer for high performance sequential injection systems

ADDITIONAL POWER – TA TA – ADDITIONAL TA The AT13 XP LPG reducer model is the new version of the AT13 family, designed for higher power engines reaching 275 kW in cold weather. The new AT13 XP has been designed with the dynamic pressure compensation system (like Nordic XP): the special double membrane system allows the LPG outlet pressure to be increased while increasing the engine load. Thanks to a special additional plate and the redesign of the water and gas circuits, this model has the highest heat exchange and gas flow in our range of LPG reducers.
The reducer has a double gas outlet, allowing direct connections of 2 injectors. This feature reduces the pressure drops on the circuit, which makes it suitable for higher power motors. AT13 XP is equipped with an internal safety valve overpressure relief system via a MAP connection, so there is no need to connect an additional hose.
