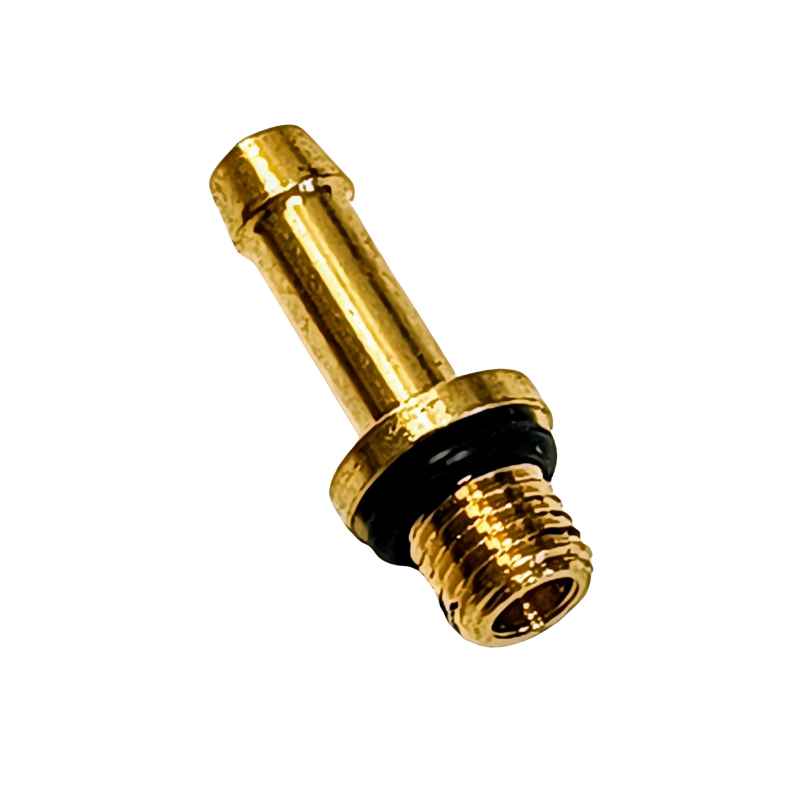

Brass LPG injector nozzle for AC STAG W02 and W03 injectors.
Equipped with a sealing O-ring , this nozzle allows the connection of an LPG hose with an internal diameter of 6 mm.
Main features:
Material: brass
Compatibility: AC STAG W02 / W03 injectors
Outer diameter of the fitting: 6 mm
Thread: M6
Total length: 22 mm
Length of the section intended to receive the hose: 15 mm
O-ring: included
Ideal for replacing a worn or damaged nozzle on a compatible LPG injector.
This brass LPG outlet nozzle is intended for AC STAG W02 and W03 gas injectors.
It is equipped with an O-ring ensuring a seal at the point of its mounting on the injector.
Thanks to its 6 mm outer diameter fitting, it allows the connection of a suitable LPG hose, ensuring the link between the injector and the engine's gas supply circuit.
| Characteristic | Value |
|---|---|
| Part type | LPG injector outlet nozzle |
| Compatibility | AC STAG W02 / W03 |
| Matter | Brass |
| Outer diameter of the fitting | 6 mm |
| Thread | M6 |
| Total length | 22 mm |
| Hose fitting length | 15 mm |
| Intended inner diameter of hose | 6 mm |
| Sealing gasket | O-ring included |
| Fuel | LPG CompatibilityThis nozzle is designed for the following LPG injectors:
Before ordering, check the dimensions and thread of the original nozzle to ensure compatibility. Benefits
FacilityThe replacement must be carried out by a qualified professional in automotive LPG installations, in compliance with the manufacturer's instructions. After installation, a leak test of the LPG circuit is essential. |
