PRINS 190/37002 LPG connection block for multi-tank installations
The PRINS 190/37002 connection block allows the supply of two LPG tanks to be combined on a single Ø 8 mm gas line , supplying the vehicle's LPG system.
It can also be used with three LPG tanks , provided a third compatible inlet fitting is added, available separately.
This LPG distributor provides a solution for vehicles requiring additional storage capacity, particularly automotive installations equipped with multiple tanks.
Safety and operation
The PRINS unit incorporates several safety features:
Non-return valves: prevent the flow of liquid LPG from one tank to another.
32 bar pressure relief valve: device for protection against overpressure.
Ø 8 mm fittings: suitable for copper LPG pipes with an outside diameter of 8 mm.
Approval E4-67R-010134: component approved according to ECE regulation R67-01.
Composition and connections

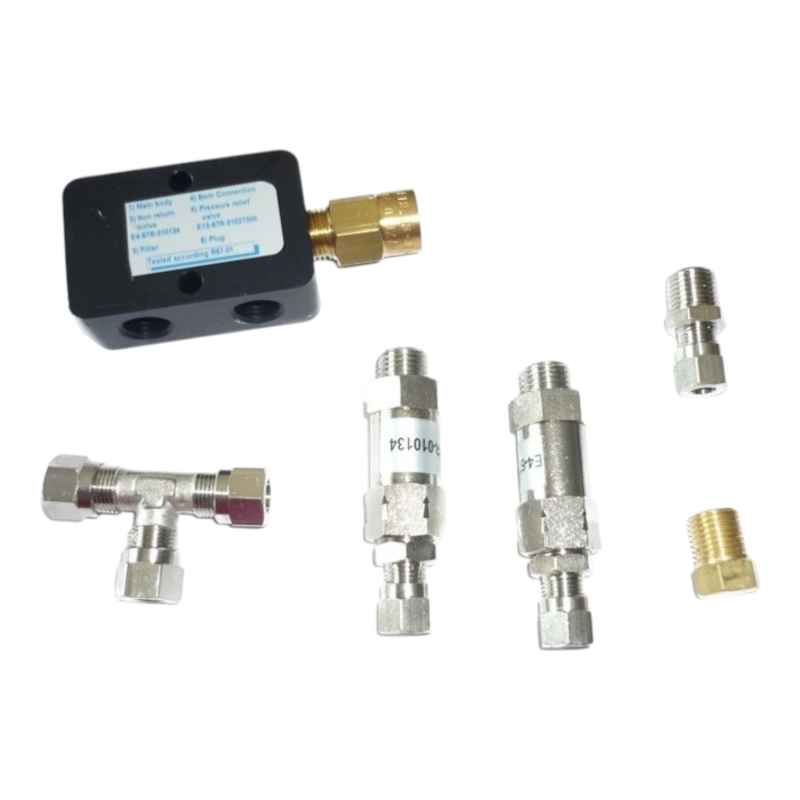

The block comes with:
1 PRINS connection block
2 inlet fittings Ø 8 mm with non-return valves
1 compression outlet fitting Ø 8 mm
1 sealing plug
1 pressure relief valve set at 32 bar
A third inlet fitting can be added as an option to allow the connection of a third LPG tank.
The arrangement of the fittings on the block can be adapted to the configuration of the installation, provided that the input, output and safety functions are respected.
Applications
This connection block is particularly suitable for:
For LPG vehicles equipped with two tanks.
For installations requiring the connection of a third tank.
For automotive LPG systems with a Ø 8 mm supply line.
Modifications or replacements of components on compatible LPG installations.
Assembly recommendations
The installation must be carried out by a qualified professional in automotive LPG systems.
Use only fittings and sealants compatible with LPG and the manufacturer's instructions. Comply with applicable regulatory requirements, in particular ECE Regulation R67-01.
After assembly, a complete check of the tightness of all connections is essential before commissioning.
Distributed in France by AIRGPL , this product is offered to professionals looking for a reliable and economical solution at an advantageous price.
