- Integrated shut-off solenoid valve with voltage supply: 12 V
- Integrated liquid phase filter
- Outlet pressure: 1.2 bar
- Pressure setting range: 1.0 1.5 bar
- Engine power :
- Pressure regulation: SW4
- Diameter of the gas inlet hole: Ø6 mm
- Gas outlet port diameter: Ø12 mm
- Diameter of rotating water pipe elbows: Ø16 mm
- Vacuum inlet: Ø5 mm
- Dimensions: 95x109x93mm
- Weight: 1.6kg

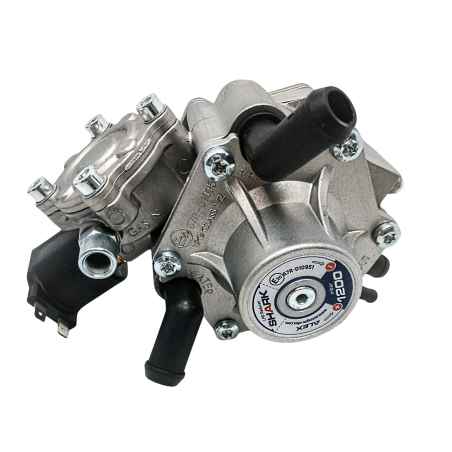

It is a high quality LPG pressure reducing valve designed for sequential gas injection systems with engine power up to 110 kW (150 HP). Its task is an evaporation and reduction of a gas pressure supplying the engine, as well as maintaining an adequate fuel pressure to ensure optimal operation of the entire system. The reducer is equipped with a gas filter for the liquid phase and the high-flow solenoid valve.
The unique and modern design guarantees smooth operation even in temperate climatic conditions, allowing smooth operation of LPG in the user's car. The special construction of the diaphragm guarantees optimum performance and the absence of pressure drops over the entire load range. When designing our product, we remembered the possibility of mounting it on two surfaces, which in many cases makes installation much easier for the installer. All this allows our SHARK reducer - based on proven, but also innovative solutions - to maintain a long and trouble-free operation of the entire gas installation.
The SHARK brand is a guarantee of quality and efficiency of the device. The shark brand from the manufacturer ALEX is distributed in France by AIR GPL via the GPL garage network
